No. | Item | Parameter |
---|---|---|
1 | Capacity | 200CPM (based on 330ml can) |

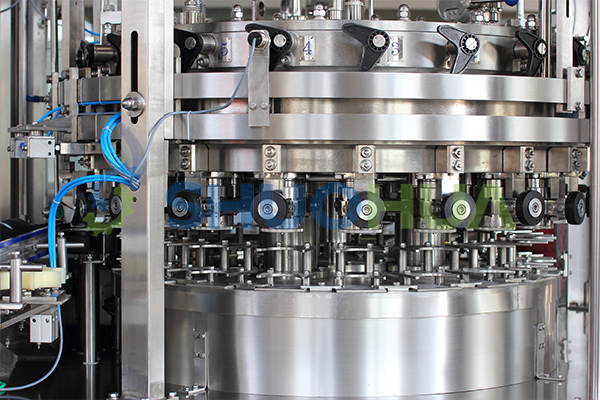

2 | Filling valve | 20 |

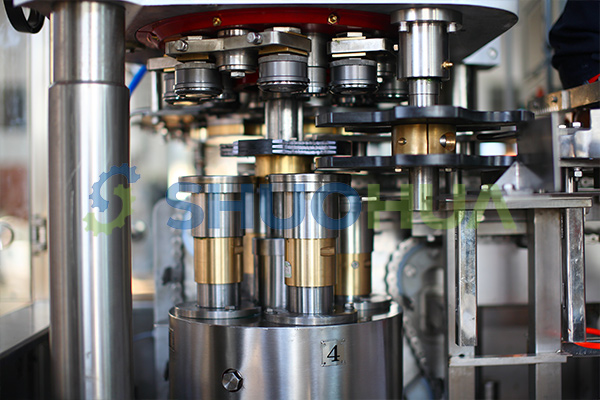

3 | Seaming head | 4 |
4 | Filling temperature | 2-4℃ |
5 | Filling method | Pressure equalization |
6 | Exhaust oxygen device | CO2 automatic purge of displacement |
7 | Distance between filling valves | 163.63mm |
8 | Beer bowl up, down regulation system | electric |
9 | Filling level accuracy | ±2mm |
10 | Working type | Filler driving force from seamer |
11 | Inlet and outlet of can direction | 360 degrees |
12 | Total power | 5KW |
13 | PLC | Siemens |
14 | Inverter | DANFOSS |
15 | Bearing brand | SKF or NSK |
16 | Overall Size (L*W*H) | 3153*1980*2350mm |
